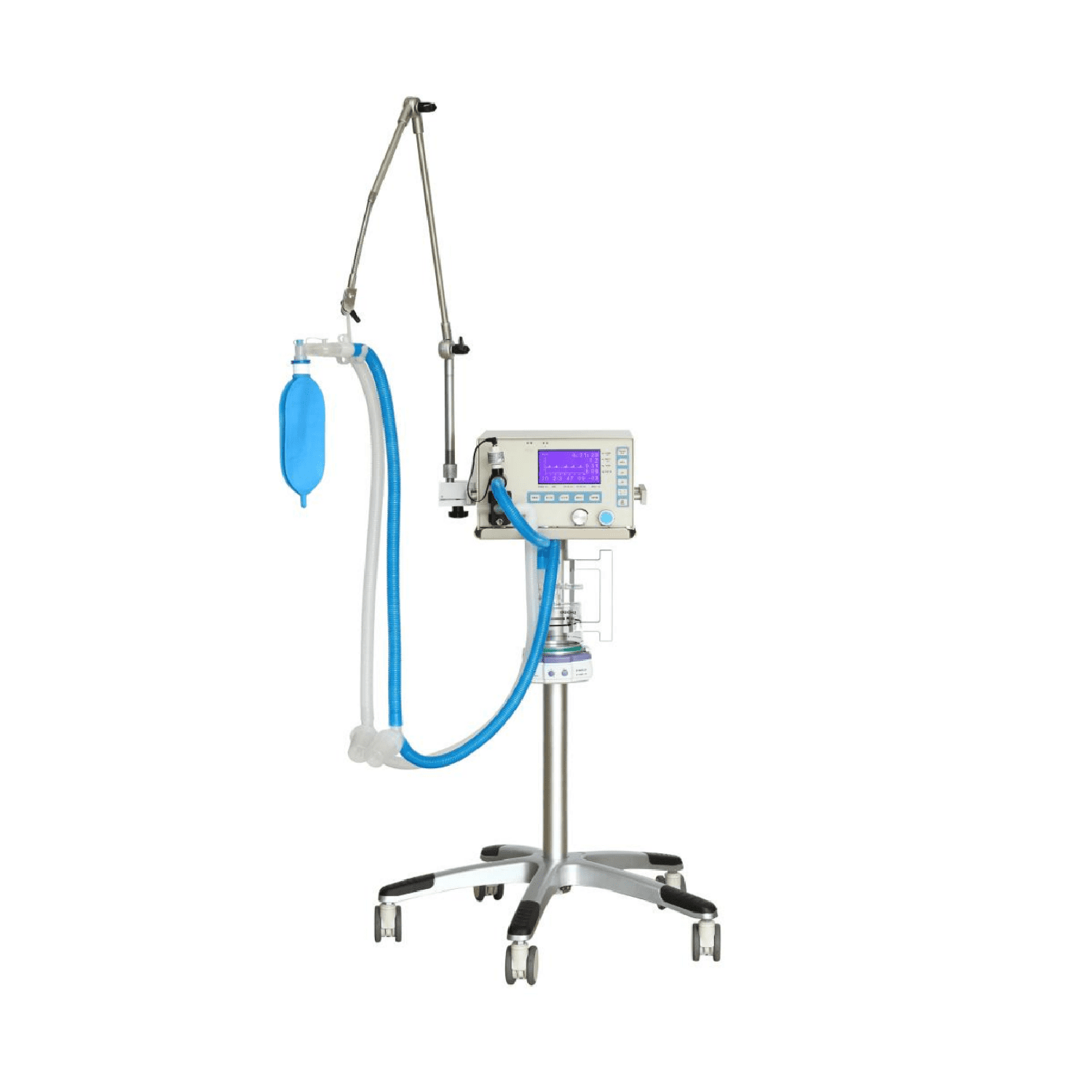

PM-VT200 ICU Ventilator

Features:

Compact design, suitable for Ambulance / ICU Pendant

High luminance LCD screen, human interface

Independent long time working extra gas source

Pneumatic driven electric control

Continuous FIO2 monitoring

High-level humidifier

High-quality reusable tubes and accessories





Specifications:

Ventilator Main Unit:

Application: Adult, Pediatric(Not for neonate)

Driven mode: Pneumatically driven electric control

Working mode: Time switch

Respiratory mode: A/C, AC+SIGN, SIMV(f/2), Manual, Spont, Apnea backup

Tidal volume: 50 – 2000ml

Frequency: 1-60 bpm

I:E: 2:1 – 1:8(adjustable)

O2 concentration: 21%-100%(continuously adjustable)

Pressure trigger sensitivity: -3 – 0KPa

High pressure limitation: 2-6KPa

High pressure limitation: 0-2KPa

PEEP: 0-2KPa

Alarm mute: ≤120 seconds

Alarm parameters: Low O2, High airway pressure, Low airway pressure, Power failure, Continuous pressure, Apnea, Low tidal volume, High O2 concentration, Gas failure



Built-in Air Compressor:

Working mode: continuously working

Exhaust pressure: 0.5Mpa

Output pressure: 0.4Mpa

Max. Flow: 70L/min

Noise: ＜50dB(A)

Power output: 250W (1/3HP)
