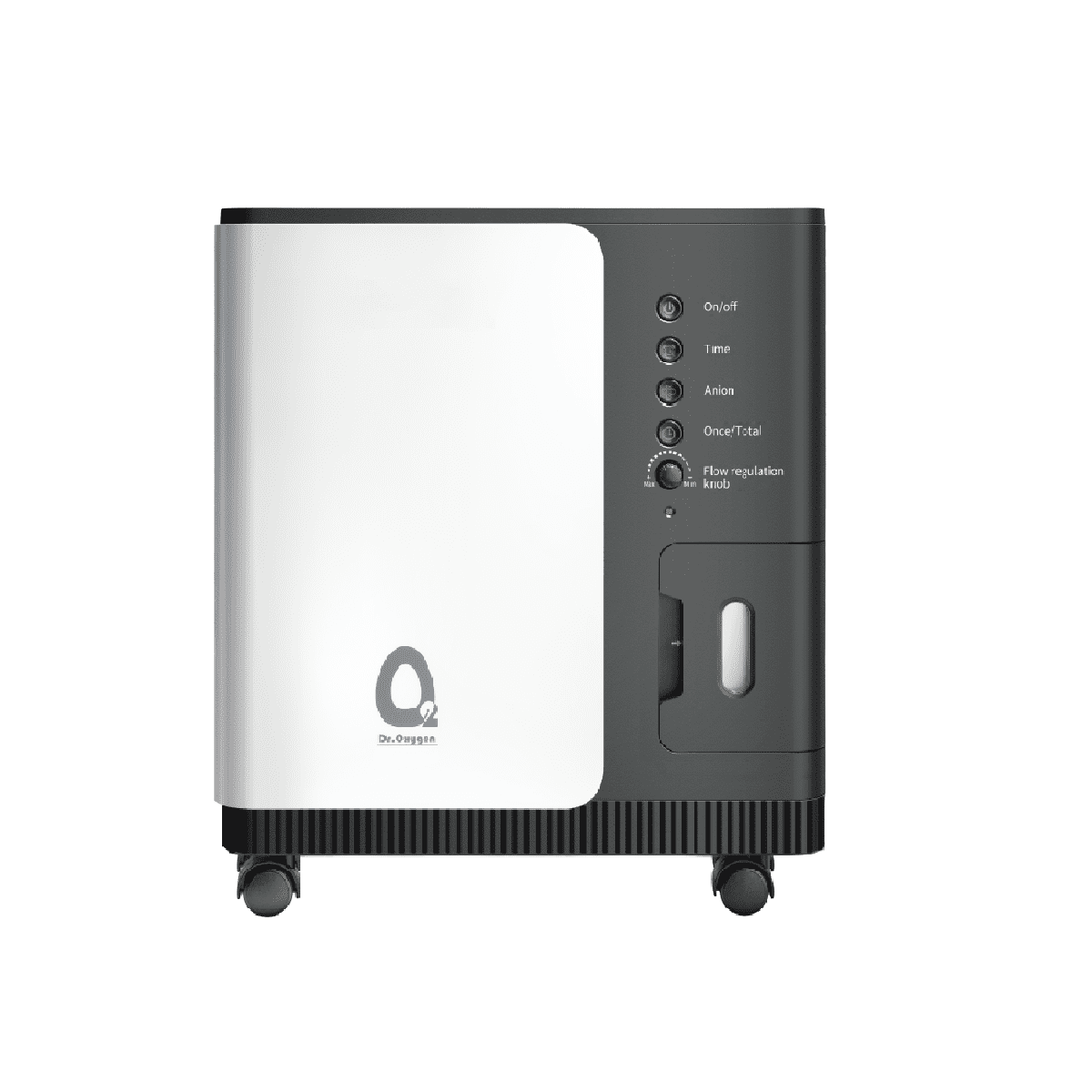

5L Medical Grade Oxygen Concentrator

Specifications:

1. Recommended maximum oxygen flow: 5L/min.
2. Flow scope: 0.5L/min～5L/min. when the nominal pressure at the outlet is 7kPa:
3. Oxygen concentration: 93％士3%
4. Output pressure: 0.02MPa～07MPa
5. Release the pressure of the compressor’s safety valve: 280kPa±50kPa
6. Noise: ≤ 60dB(A)
7. Maximum nebulization rate: ≥ 1mL / min (for model with nebulizer)
8. Input power: 450VA
9. Net weight: 17.42 kg
10. Dimensions: 38.5×25×44(cm)
11. Running mode: continuous operation
12. Safety system:

▲ Shutdown due to current overload or loose connections

▲ Shutdown due to high temperature of the compressor;

▲ Low oxygen concentration alarm;
